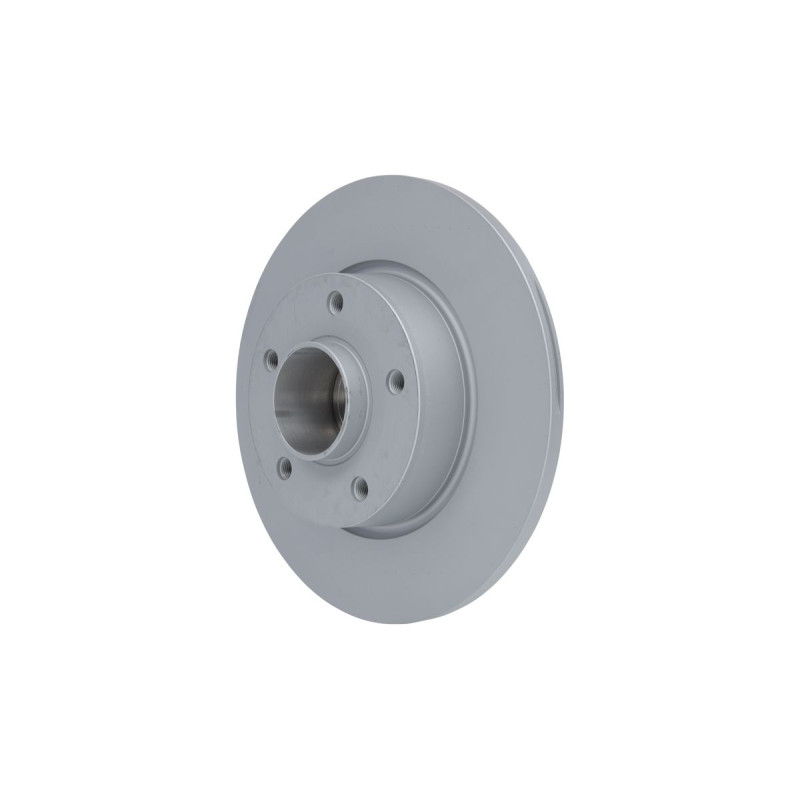

Plate Disc

Additional Product Description

Outer Diameter [mm]	280
Brake Disc Thickness [mm]	12
Minimum thickness [mm]	10
Brake Disc Type	solid
Surface	Coated
Number of Holes	5
Supplementary Article/Supplementary Info 2	with wheel bearing
Support plate diameter [mm]	35
Supplementary Article/Supplementary Info 2	with ABS sensor ring
Bolt Hole Circle Ø [mm]	118
Height [mm]	102.2
Centering Diameter [mm]	68
Inner Diameter [mm]	64.5
Thread Size	M14x1,5
Test Mark	E1 90R-02C0444/0014
GTIN / EAN	4006633307888
Article status	Normal

• Manufacturer: ATE
• Part Type: Plate Disc
• Manufacturer Product Number: 24011201772

Alternative matching part numbers (26)

Below is a list of parts found through cross-number and OEM-based matching. These items don’t always share the exact same number, but they are recognised in the industry as compatible or interchangeable with the original reference.

Brand	Alternative codes
ATE	24011201631 412177
Nissan	4320600Q0D 4320600QAB 4320600QAC 4320600QAD
OPEL	4408276 4411910 4413736 4414633 91159916 91166212 93161254 93850649
RENAULT	7701206846 7711130076 8200228610 8671019313
VAUXHALL	4408276 4411910 4413736 4414633 91159916 91166212 93161254 93850649

Alternative & superseded parts in our offer

Here’s a list of matching parts in our catalog. Many manufacturers update or replace older parts with newer versions that share compatible or interchangeable numbers. The list below includes both exact matches and parts that are alternatives or superseded versions of the original.
