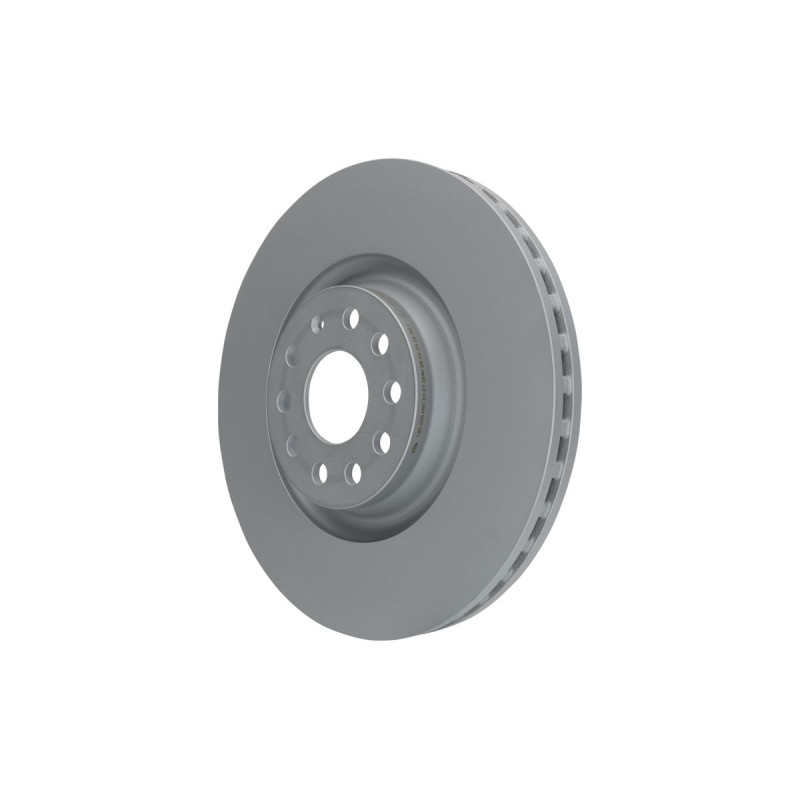

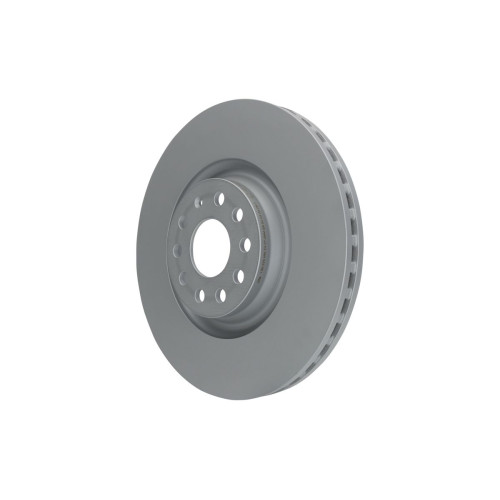

Plate Disc

Additional Product Description

Outer Diameter [mm]	340
Brake Disc Thickness [mm]	30
Minimum thickness [mm]	27
Brake Disc Type	Vented
Processing	High-carbon
Surface	Coated
Number of Holes	5
No. of holes 2	9
Bolt Hole Circle Ø [mm]	112
Height [mm]	49.6
Centering Diameter [mm]	65
Inner Diameter [mm]	145
Bore Diameter [mm]	15.3
Supplementary Article/Supplementary Info 2	with bolts/screws
Test Mark	E1 90R-02C0115/0407
GTIN / EAN	4006633383226
Article status	Normal

• Manufacturer: ATE
• Part Type: Plate Disc
• Manufacturer Product Number: 24013002251

Alternative matching part numbers (13)

Below is a list of parts found through cross-number and OEM-based matching. These items don’t always share the exact same number, but they are recognised in the industry as compatible or interchangeable with the original reference.

Brand	Alternative codes
ATE	430225
SEAT	1K0615301AD 3C0615301C 5Q0615301G
SKODA	1K0615301AD 3C0615301C 5Q0615301G
VAG	1K0615301AD 3C0615301C 5Q0615301G 5QN615301A 8S0615301 8S0615301D

Alternative & superseded parts in our offer

Here’s a list of matching parts in our catalog. Many manufacturers update or replace older parts with newer versions that share compatible or interchangeable numbers. The list below includes both exact matches and parts that are alternatives or superseded versions of the original.
