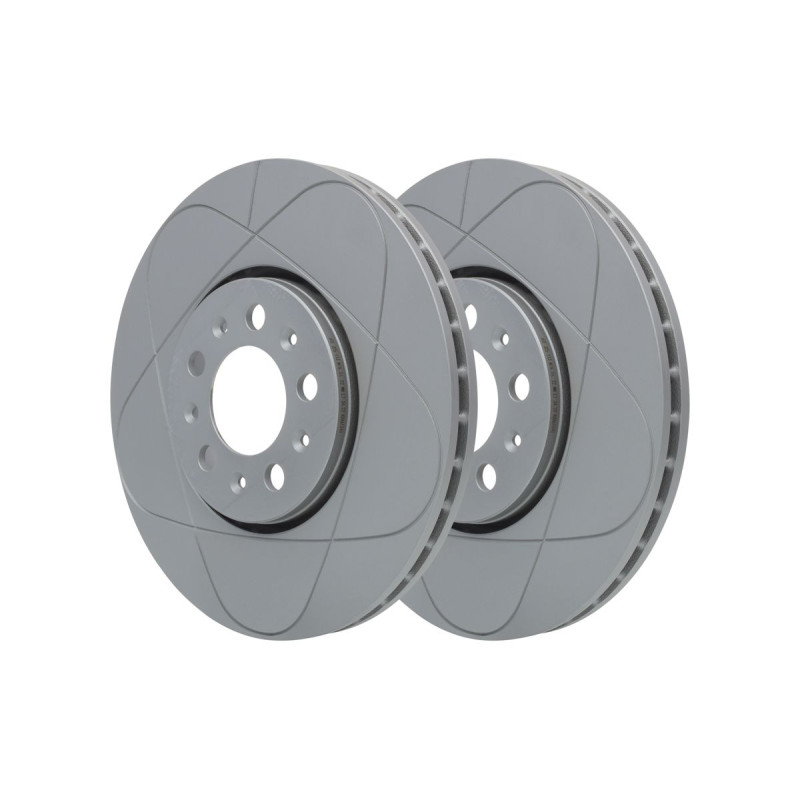

Plate Disc

Additional Product Description

Outer Diameter [mm]	288
Brake Disc Thickness [mm]	25
Minimum thickness [mm]	22
Brake Disc Type	Vented
Processing	High-carbon
Surface	Coated
Number of Holes	5
Bolt Hole Circle Ø [mm]	100
Height [mm]	34.5
Centering Diameter [mm]	65
Inner Diameter [mm]	136
Bore Diameter [mm]	15.6
Supplementary Article/Supplementary Info 2	with bolts/screws
GTIN / EAN	4006633295017
Article status	Normal

• Manufacturer: ATE
• Part Type: Plate Disc
• Manufacturer Product Number: 24032501131

Alternative matching part numbers (15)

Below is a list of parts found through cross-number and OEM-based matching. These items don’t always share the exact same number, but they are recognised in the industry as compatible or interchangeable with the original reference.

Brand	Alternative codes
ATE	525113
SEAT	1J0615301C 1J0615301R 1J0615301S 6R0615301D
SKODA	1J0615301C 1J0615301R 6R0615301A 6R0615301D
VAG	1J0615301C 1J0615301K 1J0615301R 1J0615301S 6R0615301A 6R0615301D

Alternative & superseded parts in our offer

Here’s a list of matching parts in our catalog. Many manufacturers update or replace older parts with newer versions that share compatible or interchangeable numbers. The list below includes both exact matches and parts that are alternatives or superseded versions of the original.
