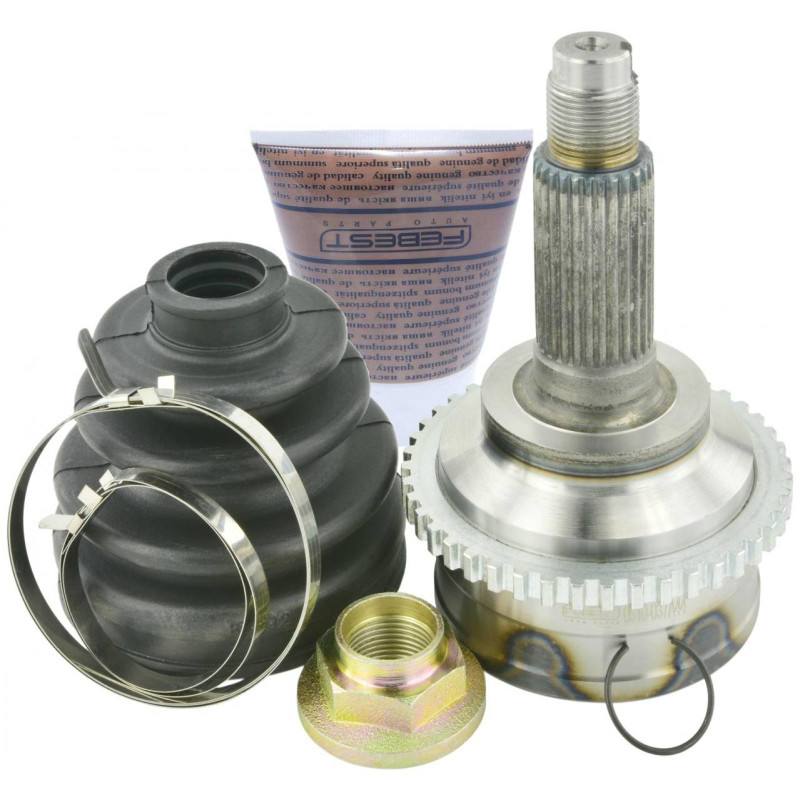

outer cv joint 30x56x28

Fitment

Fitment - Mazda (12)

• 626 Mk V (GF) (1997-2002) - Front axle
• 626 Mk V Hatchback (GF) (1997-2002) - Front axle
• 626 Mk V Station Wagon (GW) (1998-2002) - Front axle
• 626 V (GF) (1997-2002) - Front axle
• 626 V Break (GW) (1998-2002) - Front axle
• 626 V Hatchback (GF) (1997-2002) - Front axle
• 626 V Sedan (GF) (1997-2002) - Front axle
• 626 V Station Wagon (GW) (1998-2002) - Front axle
• CAPELLA V (GF) (1997-2002) - Front axle
• CAPELLA V Hatchback (GF) (1997-2002) - Front axle

2 more

• CAPELLA V Rural (GW) (1998-2002) - Front axle
• CAPELLA V Station Wagon (GW) (1998-2002) - Front axle

Show all fitment information

Additional Product Description

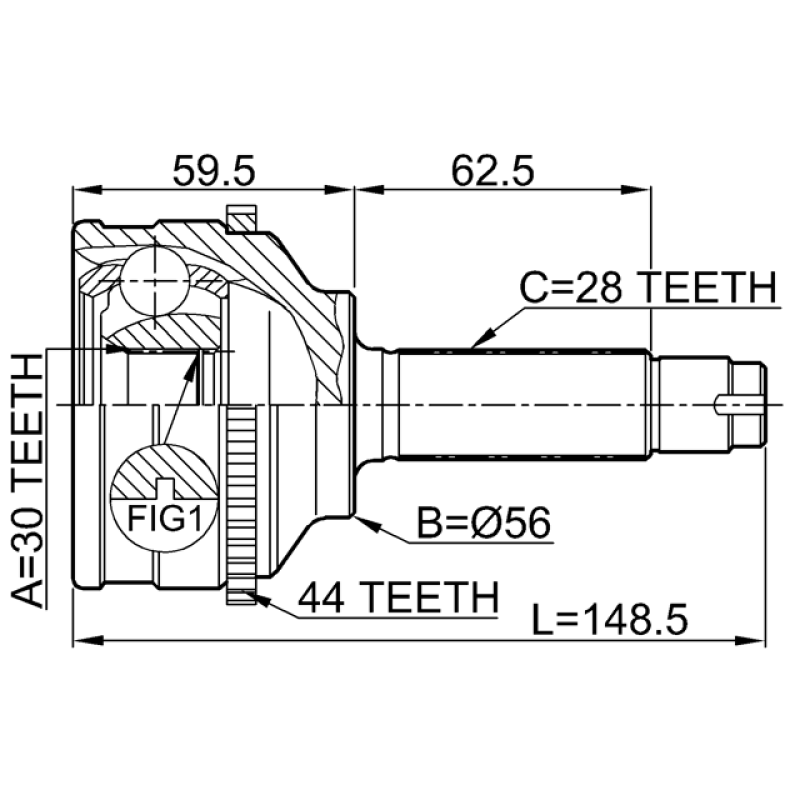

Fitting position	Front axle, Wheel side
Number of teeth, abs ring	44
Outer diameter [mm]	83
External toothing wheel side	28
Internal toothing wheel side	30
seal ring diameter [mm]	56
supplementary article/supplementary info 2	With abs sensor ring

• Manufacturer: FEBEST
• Part Type: outer cv joint 30x56x28
• Category: Drive shaft and cv joint
• OEM Reference: MAZDA GD17-22-510, MAZDA GD1725500, MAZDA GD17-25-500A, MAZDA GD17-25-500B, MAZDA GD17-25-50X, MAZDA GD17-25-50XA, MAZDA GD17-25-50XB, MAZDA GD17-25-60X, MAZDA GD17-25-60XA, MAZDA GD17-25-60XB
• Manufacturer Product Number: 0510-037A44

Alternative matching part numbers (11)

Below is a list of parts found through cross-number and OEM-based matching. These items don’t always share the exact same number, but they are recognised in the industry as compatible or interchangeable with the original reference.

Brand	Alternative codes
FEBEST	0510-037A44
MAZDA	GD17-22-510 GD1725500 GD17-25-500A GD17-25-500B GD17-25-50X GD17-25-50XA GD17-25-50XB GD17-25-60X GD17-25-60XA GD17-25-60XB
